6061 Aircraft Aluminum Sheet

6061 Aircraft Aluminum

6061 alumium sheet for airplane.jpg6061 aluminum sheet is an economical, lightweight and medium-strength alloy. Its main alloy elements are Si, Mg, Mn,Ti, Zn,Cu, Fe,etc. Compared with other alloys, it has higher corrosion resistance. It also has good mechanical properties and is easily welded.

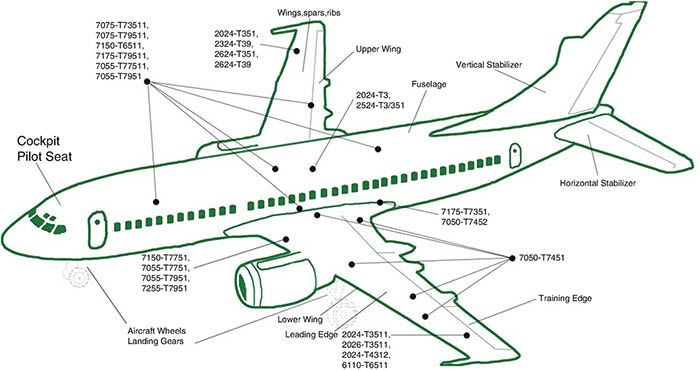

In aerospace industry, 6061 aluminum alloy is used for wing, fuselage structures and other non-critical aircraft parts, such as seat rails, handles and aircraft landing pads. It is especially common in homebuilt aircraft.

The Application of 6061 Aluminum Sheet

  • Because of its corrosion resistance and light weight, it is often used for aviation interior parts and aircraft container.

  • It is also an economical choice for the ultralight aircraft emphasizing safety, economy and comfort. Ultralight aircraft usually refers to a small general-purpose aircraft driven by a propeller, with a crew of no more than 2 people, and a maximum take-off weight of no more than 480kg. Most of them are made of aluminum alloy, nylon cloth, balsa wood, hard foam and other materials, and then can fly with a small engine of dozens of horsepower.

aircraft strucure.jpg

Specification of 6061 Aircraft Aluminum Sheet

Chemical Composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Zr

Ti

Standard

6061

0.40-0.8

0.7

0.15-0.40

0.15

0.8-1.2

0.04-0.35

0.25

0.15

-

GB/EN/AMS

Size

Alloy

Temper

Thickness(mm)

Width(mm)

6061

O/T4/T6

0.3-3.5

1000-2600

Mechanical Properties

Alloy

Temper

Tensile strength(mm)

RM(Mpa)

Yield strength

RP0.2(Mpa)

Breaking elongation

A50%

Standard

6061

O

130-145

65-75

25-35

AMS-QQ-A25011

T4

240-270

160-200

20-30

AMS 4026

T6

320-360

260-290

15-25

AMS 4027

Three Tempers of 6061 Aluminum Sheet

  • 6061-O temper has maximum ultimate tensile strength no more than 150 MPa, maximum yield strength no more than 80MPa and elongation of 10–18%.

  • 6061-T4 temper has maximum ultimate tensile strength no more than 180 MPa, maximum yield strength no more than 110 MPa and elongation of 10–16%.

  • 6061-T6 temper has maximum ultimate tensile strength of at least 290 MPa, maximum yield strength of at least 240 MPa that is higher than certain types of stainless steel.

Why Choose Haomei Aluminum

1. Haomei 6061 aircraft aluminum has good processing performance, good corrosion resistance, no deformation after processing, easy coating, good oxidation effect,etc., which is widely used in automobile lightweight, mobile phone shell and aerospace industry.

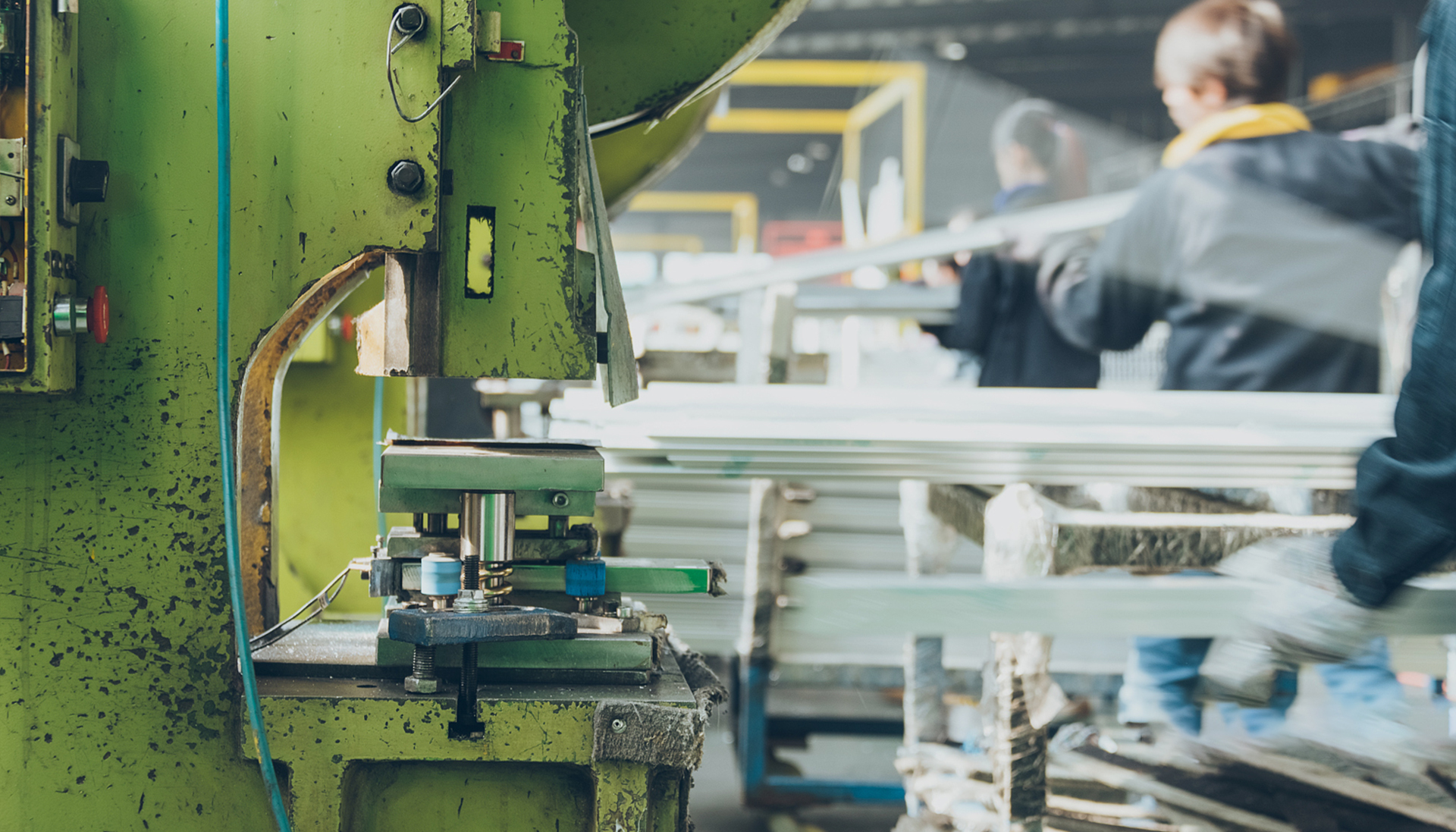

2. Haomei Aluminum has introduced a 6000T stretching machine, which is the world's most advanced equipment, to eliminate the residual internal stress of the product after quenching, and to ensure that the product is not deformed during processing and can meet customers' requirements on strength, precision tolerances, fatigue strength and corrosion resistance.

6061 VS 7075Aircraft Aluminum

Item

6061

7075

Main Alloy

Mg: 0.80-1.2

Zn: 5.1-6.1

Mechanical Properties

Tensile strength: 310 Mpa

Yield strength: 275 Mpa

HB: 95

Tensile strength: 570 Mpa

Yield strength: 505 Mpa

HB: 150

Processing Ability

Machinability: Good

Weldability: Weldable

Surface treatment: Surface treatment such as oxidation coloring can be carried out more conveniently.

Corrosion resistance: Excellent

Machinability: Good

Weldability: Poor

Surface treatment: The oxidation effect of 7075 is unstable.

Corrosion resistance: Poor

Aluminum Sheet Price

Under normal situations, 7075 aluminum sheet price is about 20-40% more expensive than 6061 aluminum sheet.
